1. Product Overview

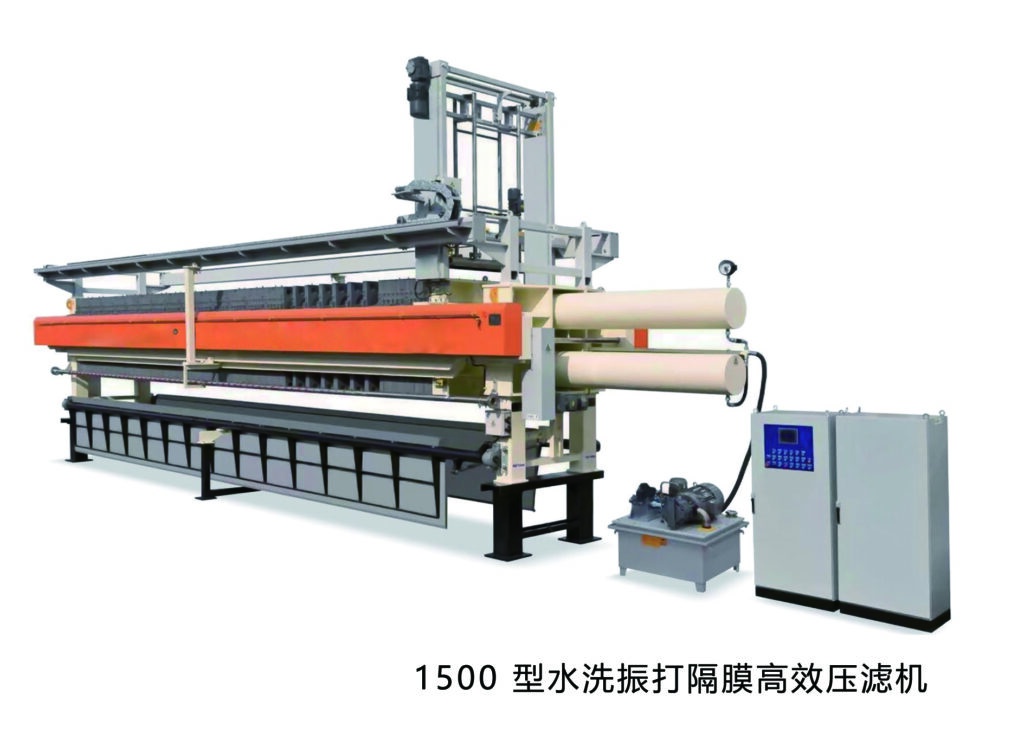

The 1500 Series is a high-end, heavy-duty solution designed for large-scale industrial solid-liquid separation. Featuring large 1500mm x 1500 filter plates, this machine offers a massive filtration area (ranging from 100m^2 to over 600m^2). It is specifically engineered for demanding processes that require high cake purity, ultra-low moisture content, and high-volume throughput, such as large mining operations, fine chemical processing, and advanced wastewater treatment.
2. Core Technical Advantages
- High-Pressure Diaphragm Squeezing: Equipped with reinforced polypropylene (PP) diaphragm plates, the system performs a secondary mechanical squeeze after the feeding cycle. This process significantly reduces cake moisture content (typically by an additional 8%-15% compared to standard chamber presses), lowering subsequent drying or transportation costs.
- Multi-Stage Water Washing System: The integrated washing channels allow for efficient cake washing. This “water wash” feature effectively removes impurities or recovers valuable solvents from the filter cake. It improves washing efficiency by approximately 40% over traditional models, ensuring the highest product purity.
- Integrated Vibration Discharge System: To solve the problem of sticky cakes that do not drop automatically, this model features a high-frequency pneumatic or mechanical vibration mechanism. Upon plate opening, the vibration ensures the cake detaches completely and rapidly, reducing manual labor and keeping residue rates below 0.5%.
- Advanced Intelligent Automation: Controlled by a high-performance PLC and touchscreen interface, the entire cycle—clamping, feeding, washing, squeezing, vibrating, and cloth washing—is fully automated. It includes pressure self-compensation, real-time monitoring, and fault self-diagnosis for maximum safety and uptime.
3. Key Technical Specifications
- Plate Size: 1500mm x1500mm (Standard).
- Filtration Pressure: Standard feeding pressure up to 0.6-1.0 MPa; Diaphragm squeezing pressure up to 1.2-2.0 MPa.
- Materials: Plates made from enhanced high-strength PP for superior corrosion resistance; frame constructed from heavy-duty Q345B steel with anti-corrosion coating.
4. Primary Applications
- Mining & Metallurgy: Concentrates dewatering, tailings dry stacking, and rare metal extraction.
- Chemical & Pharmaceutical: Extraction and washing of dye intermediates, pigments, and fine chemicals.
- Environmental Protection: Deep dewatering of municipal sludge and Zero Liquid Discharge (ZLD) industrial wastewater treatment.
- Food & Beverage: High-standard filtration for starch, juice, and oils (Food-grade configurations available).
Choosing the Right Filter Press: Your Solid-Liquid Separation Expert
In industrial production, solid-liquid separation is a crucial and often complex process. The filter press is a highly efficient solid-liquid separation machine that plays a vital role in various fields, including chemical processing, mining, food production, and wastewater treatment. Selecting the right filter press machine can not only significantly boost production efficiency but also optimize resource utilization and reduce operational costs.
How a Filter Press Operates
A filter press separates solids from liquids by applying pressure. The core process involves pumping a slurry into closed chambers formed by filter plates and filter cloths. Under pressure, the liquid (filtrate) passes through the filter cloth and is discharged, while the solid particles are retained, gradually accumulating to form a “filter cake.” This process is both efficient and stable, ensuring thorough solid-liquid separation.
Key Factors Influencing Filter Press Efficiency
To choose the best filter press, it is essential to understand the key factors that affect its performance:
- Slurry Characteristics: The particle size, concentration, and chemical composition of the slurry are the primary factors influencing filtration efficiency. Different slurry characteristics require matching with specific filter press models and filter cloths.
- Filter Plate Design: The design of the filter press plate directly impacts the filtration result. Common types include:
- Chamber Filter Plate: Simple in structure, suitable for general solid-liquid separation, and forms a fixed-volume filter cake.
- Membrane Filter Plate: Features an expandable membrane that can provide a secondary squeeze on the filter cake after filtration, further reducing its moisture content. This type is commonly used in industries requiring high purity or maximum dewatering.
- Plate and Frame Filter Plate: Ideal for small-batch processing, offering excellent flexibility.
- Filtration Pressure: The appropriate filtration pressure is crucial. Excessive pressure can damage the filter cloth, while insufficient pressure leads to low separation efficiency.
- Filter Cloth Material: The selection of the filter cloth is key to ensuring the efficient operation of the filter press. The right material prevents clogging and maximizes liquid flow rate.
How to Choose a Filter Press
When selecting a filter press for your business, consider the following points:
- Understand Your Application Needs: Determine the type and volume of slurry you need to process, as well as the required moisture content of the filter cake and the purity of the filtrate.
- Compare Different Types: The chamber filter press is popular for its high efficiency and wide application in mining and chemical industries. The membrane filter press stands out for its superior dewatering capabilities in industries demanding high purity. The plate and frame filter press is an ideal choice for small-batch processing due to its flexibility.
- Consider Long-Term Benefits: Investing in a high-quality filter press machine means lower maintenance costs and a longer service life, providing a significant long-term return on your investment.
Choosing a suitable filter press is a critical step in improving your production process efficiency and profitability. By thoroughly understanding your needs and consulting with professionals, you will be able to find the best solid-liquid separation solution for your business.
Choosing the Right Filter Press: Your Solid-Liquid Separation Expert
In industrial production, solid-liquid separation is a crucial and often complex process. The filter press is a highly efficient solid-liquid separation machine that plays a vital role in various fields, including chemical processing, mining, food production, and wastewater treatment. Selecting the right filter press machine can not only significantly boost production efficiency but also optimize resource utilization and reduce operational costs.
How a Filter Press Operates
A filter press separates solids from liquids by applying pressure. The core process involves pumping a slurry into closed chambers formed by filter plates and filter cloths. Under pressure, the liquid (filtrate) passes through the filter cloth and is discharged, while the solid particles are retained, gradually accumulating to form a “filter cake.” This process is both efficient and stable, ensuring thorough solid-liquid separation.
Key Factors Influencing Filter Press Efficiency
To choose the best filter press, it is essential to understand the key factors that affect its performance:
- Slurry Characteristics: The particle size, concentration, and chemical composition of the slurry are the primary factors influencing filtration efficiency. Different slurry characteristics require matching with specific filter press models and filter cloths.
- Filter Plate Design: The design of the filter press plate directly impacts the filtration result. Common types include:
- Chamber Filter Plate: Simple in structure, suitable for general solid-liquid separation, and forms a fixed-volume filter cake.
- Membrane Filter Plate: Features an expandable membrane that can provide a secondary squeeze on the filter cake after filtration, further reducing its moisture content. This type is commonly used in industries requiring high purity or maximum dewatering.
- Plate and Frame Filter Plate: Ideal for small-batch processing, offering excellent flexibility.
- Filtration Pressure: The appropriate filtration pressure is crucial. Excessive pressure can damage the filter cloth, while insufficient pressure leads to low separation efficiency.
- Filter Cloth Material: The selection of the filter cloth is key to ensuring the efficient operation of the filter press. The right material prevents clogging and maximizes liquid flow rate.
How to Choose a Filter Press
When selecting a filter press for your business, consider the following points:
- Understand Your Application Needs: Determine the type and volume of slurry you need to process, as well as the required moisture content of the filter cake and the purity of the filtrate.
- Compare Different Types: The chamber filter press is popular for its high efficiency and wide application in mining and chemical industries. The membrane filter press stands out for its superior dewatering capabilities in industries demanding high purity. The plate and frame filter press is an ideal choice for small-batch processing due to its flexibility.
- Consider Long-Term Benefits: Investing in a high-quality filter press machine means lower maintenance costs and a longer service life, providing a significant long-term return on your investment.
Choosing a suitable filter press is a critical step in improving your production process efficiency and profitability. By thoroughly understanding your needs and consulting with professionals, you will be able to find the best solid-liquid separation solution for your business.
Contact Qingdao Britop for more information if you are interested.
