MT-SD38 Manual Hose Crimping Machine – Hand-Operated 6-50mm Crimper
The MT-SD38 is Britop’s manual hand-operated hydraulic hose crimping machine with 6-50mm range, 8 die sets, and 70MPa hand pump. No electricity required for remote site use.
SD25 Manual Hose Crimping Machine – Hand-Operated 10-27mm Portable Crimper
The SD25 is Britop’s ultra-compact manual hand-operated hydraulic hose crimping machine with 10-27mm range, 7 die sets, and lightweight 35Kg design. Fits in any service truck.
MT-51BJ-1 Hydraulic Hose Skiving Machine – 6-51mm Electric Hose Peeler
The MT-51BJ-1 is Britop’s electric hydraulic hose skiving machine with 6-51mm peeling range, 0.75-1.5Kw motor, and 1500 Pcs/H efficiency. Inner-liner-protecting design for professional crimping.
MT-51BJ-2 Dust-Free High-Pressure Hose Skiving Machine
The MT-51BJ-2 is Britop’s dual-function electric hydraulic hose skiving machine with 1-51mm range, internal and external peeling, and 1.1Kw motor.
QD-51 Dust-Free Hose Cutting Machine – Electric Hydraulic Hose Cutter
The QD-51 is Britop’s electric hydraulic hose cutting machine with 1-51mm range, 1.5Kw motor, and 3800 rpm. Clean precise cuts for professional hose assembly lines.

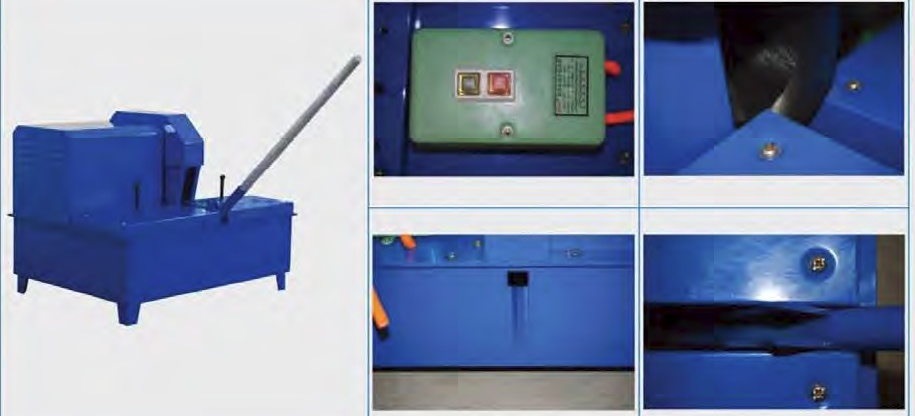

QG-38 Hydraulic Hose Cutting Machine – Benchtop Electric Hose Cutter
The QG-38 is Britop’s compact electric hydraulic hose cutting machine with 6-38mm range, 1.5Kw motor, and 3800 rpm. Designed for efficient cutting in smaller workshops.
Hose Crimping Machine CBK 120B
Crimping Range:6-76mm
Quantity Of Dies:15sets
Accuracy:0.01mm
Output Volume Of Pump:10L
System Pressure:31.5mpa
Motor Power:5.5KW
Voltage:380V
Crimping Force:2800KN
Work Efficiency:300pcs/h
Maximum Open Diameter:165mm
The Max Open Tolerance:+53mm
Machine Dimension:755*1045*1630mm
Package Dimension:844*1090*1760mm
Net Weight:1250Kg
Gross Weight:1300Kg
Hose Crimping Machine CBK 120A
Crimping Range:6-76mm
Quantity Of Dies:15sets
Accuracy:0.01mm
Output Volume Of Pump:10L
System Pressure:31.5mpa
Motor Power:5.5KW
Voltage:380V
Crimping Force:2800KN
Work Efficiency:300pcs/h
Maximum Open Diameter:165mm
The Max Open Tolerance:+53mm
Machine Dimension:755*1045*1630mm
Package Dimension:844*1090*1760mm
Net Weight:1250Kg
Gross Weight:1300Kg
Hose Crimping Machine CBK 220
Crimping Range:6-102mm
Quantity Of Dies:18sets
Accuracy:0.01mm
Output Volume Of Pump:16L
System Pressure:31.5mpa
Motor Power:7.5KW
Voltage:380V
Crimping Force:3200KN
Work Efficiency:300pcs/h
Maximum Open Diameter:210mm
The Max Open Tolerance:+53mm
Hose Crimping Machine CBK-120C
High-pressure hose crimping machine (also called hose clamping machine/pipe crimping machine) is key equipment for manufacturing high-pressure hose assemblies. It tightly crimps metal fittings with high-pressure hoses via a hydraulic-driven crimping mechanism, featuring high precision, easy operation, wear-resistant dies and stable dual hydraulic circuits. With a typical crimping range of 6-76mm and motor power of 3-5.5kW, it is widely applied in oil fields, coal mines, construction machinery and other industries requiring hydraulic system components.
Hose Crimping Machine CBK 750
CBK 750
Crimping Range
6- 530mm
Quantity Of Dies 13 sets
Accuracy 0.01 mm
Output Volume Of Pump 25L
System Pressure 31.5mpa
Motor Power 11KW
Voltage 380V
Crimping Force 4500KN
Work Efficiency 300 pcs/h
Maximum Open Diameter 590MM (Die not set)
The Max Open Tolerance +53mm
hose crimping machine,CBK300
CBK300
Crimping Range 50-330mm
Quantity Of Dies Five bespoke sets
Accuracy 0.01 mm
Output Volume Of Pump 25L
System Pressure 31.5mpa
Motor Power 11KW
Voltage 380V
Crimping Force 4500KN
Work Efficiency 300 pcs/h
Maximum Open Diameter 450MM(Die not set)
The Max Open Tolerance +53mm
