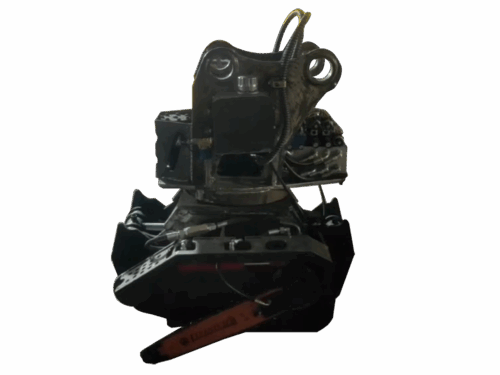

Grapple Saw Key Features
- Compatibility: Designed for excavators weighing between 6 and 30 tons.
- Ideal Use: Perfect for urban environments or confined spaces. It is a great complement to a tiltrotator.
- Safety & Efficiency:
- Allows operators to stay safely in the cab.
- Eliminates the need for climbing trees or using platforms, especially near power lines.
- Cuts and lowers branches securely, saving time and money.
- Productivity Features:
- SuperCut system minimizes downtime.
- Automatic chain tensioning and proportional lubrication.
- Fast and easy replacement of the saw bar and chain.
- Technical Specifications:
- Built-in bar feed cylinder.
- Sequence-controlled saw function.
- Saw activating valve included.
- Simple installation.
| Type/Parameter | UOM | BTHMIL04 | BTHMIL06 | BTVMIL08 |
| Compatible excavators | Ton | 6-10 | 10-18 | 20-30 |
| Weight | kg | 750 | 1150 | 1800 |
| Cylinder dia. | mm | 760 | 950 | 1170 |
| Working Pressure | mpa | 18 | 22 | 24 |
| Working flow | lpm | 22 | 60 | 70 |
| Overall length | mm | 1430 | 1780 | 2220 |
| Overall width | mm | 890 | 1120 | 1370 |
| Overall height | mm | 1200 | 1500 | 1850 |
Construction and Engineering Projects:
- Foundation excavation: Excavating foundations and basements for residential buildings, commercial high-rises, or industrial plants.
- Road and bridge construction: Used for subgrade leveling, excavation, and backfilling, as well as bridge foundation construction.
- Tunnel excavation: Used for clearing earth and rock in tunneling projects.
Infrastructure and Utility Projects:
- Pipeline laying: Digging and backfilling trenches for water, electricity, gas, and telecommunication lines.
- Water conservancy projects: Used for building dams, canals, flood embankments, and dredging rivers.
Mining and Quarrying Projects:
- Open-pit mining: Used for stripping topsoil and excavating minerals.
- Material loading and unloading: Loading excavated materials onto transport trucks.
Demolition and Environmental Projects:
- Building demolition: Used with hydraulic shears or hammers to demolish old buildings.
- Waste clearing: Removing construction waste and handling industrial waste.
- Site remediation: Used for excavating and restoring contaminated land.
Agricultural and Landscaping Projects:
- Farmland transformation: Leveling land and digging irrigation channels.
- Landscaping: Used in large-scale projects for digging, moving trees, and grading terrain.
Contact Qingdao Britop for more information if you are interested.
