Medical IT Isolation Power System

In critical healthcare environments such as Operating Theaters (OT) and Intensive Care Units (ICU), power continuity is not just a technical requirement—it is a life-critical necessity. The YCIT Series Medical IT Isolation Power System by Sichuan Yachen Electricity Co., Ltd. is engineered to meet the rigorous safety standards of IEC 60364-7-710 and GB 51348. Unlike standard TN/TT grounding systems, the YCIT system utilizes a high-precision isolation transformer and an advanced 32-bit ARM-based insulation monitor to detect leakage currents as low as 10μA. By ensuring that the power supply remains uninterrupted even during the first insulation fault, this system provides a "safety wall" for life-support equipment, effectively eliminating the risk of micro-shocks to patients while maintaining operational stability for medical teams.

Product Specification: Medical IT Isolation Power System

1. System Overview

In the specialized environment of a hospital, leakage currents pose a potential life-threatening risk to patients. The Medical IT System, also known as the Medical Isolated Power Supply System, is specifically engineered to provide a safe and reliable power source for critical locations. These include operating theaters (OT), intensive care units (ICU), and cardiac surgery rooms.

The primary objective is to ensure that all live conductors within the protected area are isolated from the ground, thereby preventing dangerous micro-shocks caused by insulation failures. The system utilizes an isolation transformer in conjunction with an insulation monitor to continuously track the resistance and current between the secondary side live conductors and the earth

2. Technical Standards & Compliance

The YCIT series is designed and manufactured in strict accordance with national and international standards to guarantee maximum safety

IEC 60364-7-710 / GB/T 16895.24: Requirements for special installations or locations – Medical locations
GB 50333: Technical code for building of hospital clean operating department
GB 51348: Standard for electrical design of civil buildings
IEC 62020 / GB/T 19214: Electrical accessories – Residual current monitors for household and similar uses

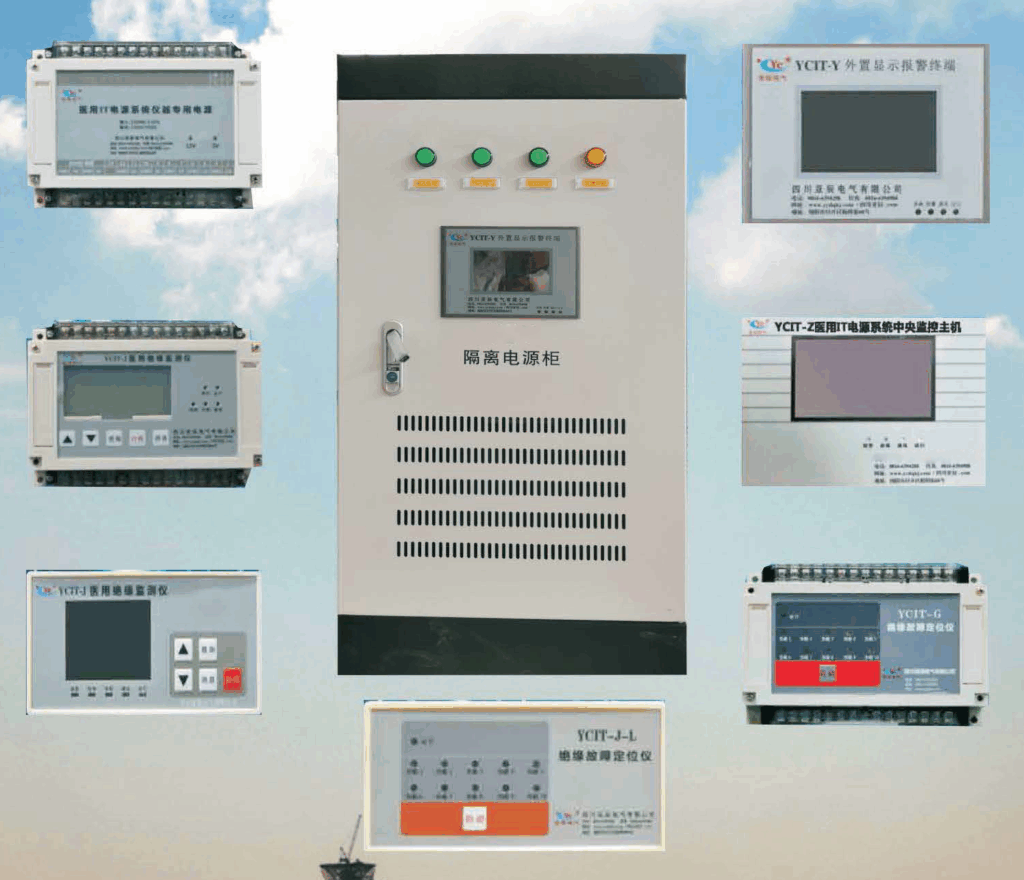

3. Core System Components

The Yachen Medical IT System is a highly integrated solution comprising several high-performance modules:

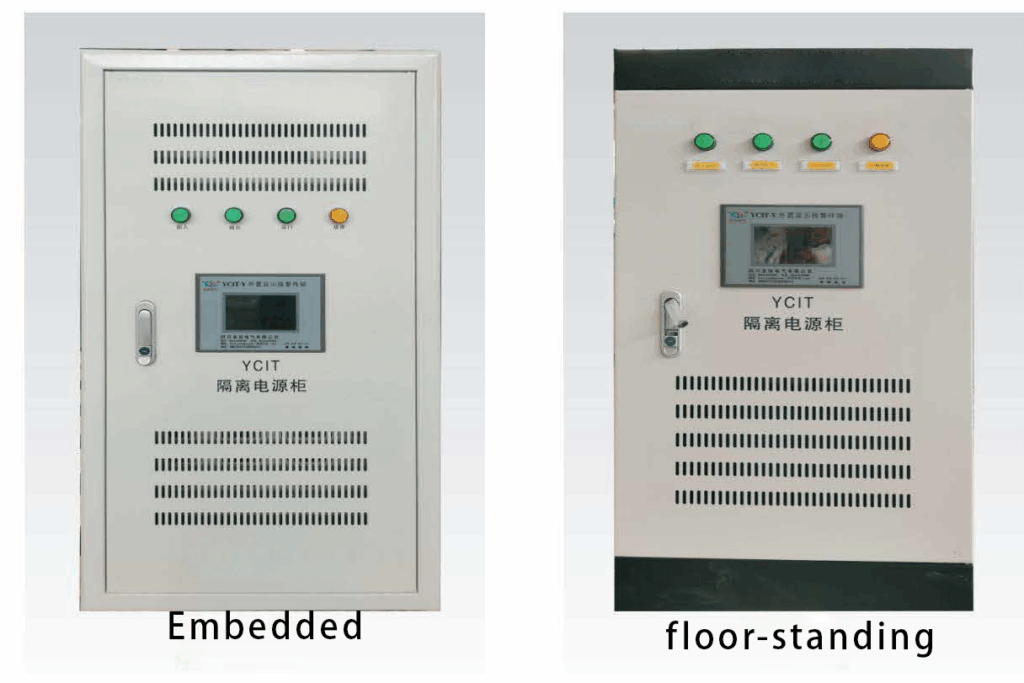

3.1 YCIT Series Isolated Power Cabinet

This integrated low-voltage assembly houses the isolation transformer, insulation monitor, and remote alarm terminals

Key Features: Highly integrated for easy installation, noise-reduction technology (<40dB), and AI-based “Artificial Intelligence Protection Wall” for real-time monitoring of insulation, load, and temperature
Protection: IP31 rated with full protection against overcurrent, overheating, and short circuits

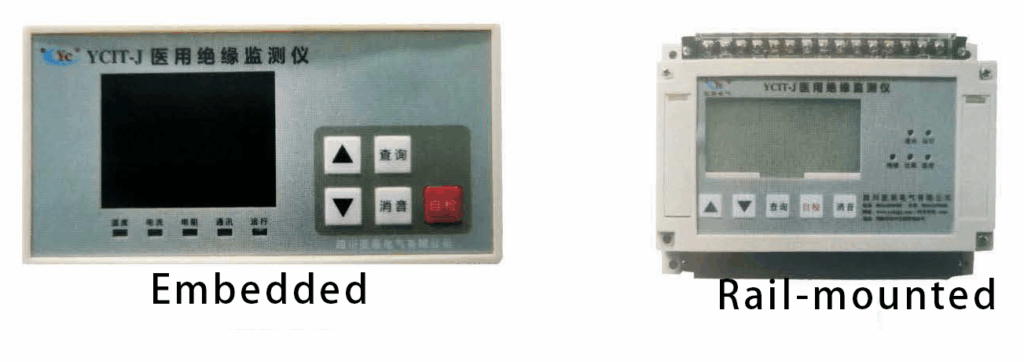

3.2 YCIT-J Series Insulation Monitor

Functionality: Monitors insulation resistance (30kΩ–5000kΩ), voltage (30V–500Vac), load current (0.5A–120A), and transformer temperature (-30°C to 210°C)
Alarms: Provides localized audible and visual signals when parameters exceed preset limits
Advanced Analysis: Features harmonic analysis (up to the 22nd order) and waveform monitoring to ensure power quality

3.3 YCIT-B Series Isolation Transformer

The heart of the system, responsible for converting utility power into isolated power

Material: High-quality oxygen-free copper with H-class insulation
Capacity: Available in 6.3KVA, 8KVA, and 10KVA models
Safety: Features full electrostatic copper shielding between primary and secondary windings to prevent interference with sensitive medical equipment

3.4 Auxiliary Devices

YCIT-Y Remote Alarm Terminal: Installed at nurse stations or operating room information panels to provide remote status updates and synchronized alarms for up to 8 monitoring units
YCIT-G Insulation Fault Locator: Rapidly identifies the specific branch circuit where an insulation fault has occurred, displaying results in seconds via LED indicators
YCIT-D Dedicated Power Supply: A specialized AC220V to DC12V converter designed with medical-grade interference resistance to power the monitoring modules

4. Key Performance Specifications

Parameter	Specification
Rated Operating Voltage (Ue)	AC 220V
Rated Frequency	50/60Hz
Insulation Resistance Measurement	Range: 30~5000KΩ; Accuracy: ±10%
Current Monitoring Accuracy	RMS 0.5%
Transformer Temperature Rise	≤ 90°C (at full load)
Operating Noise	< 40dB
Communication Interface	RS485 (Half-duplex), supports custom protocols
Environmental Conditions	-10°C to +40°C; Humidity ≤ 95% (non-condensing)

5. Applications & Benefits

The Yachen IT system is essential for “Group 2” medical locations where power continuity is critical for life support

Uninterrupted Power: In the event of a first insulation fault, the system does not trip, allowing surgeons to complete procedures safely
Enhanced Safety: Reduces leakage current to less than 10μA, protecting patients from micro-shocks
Smart Management: RS485 communication allows for central monitoring via PC or building management systems (BMS)

2. Medical IT Isolation Power System

System Overview

In sensitive hospital environments (Operating Theaters, ICU, Cardiac Surgery), leakage currents pose life-threatening risks. The Medical IT System ensures a safe, reliable power supply by isolating all live conductors from the ground, preventing micro-shocks.

Classification of Medical Locations:

Group 0: No medical electrical equipment used on patients (e.g., waiting rooms).
Group 1: Equipment used externally or non-critically (e.g., wards, X-ray rooms).
Group 2: Life-support equipment or intracardiac procedures (e.g., OT, ICU, CCU). IT systems are mandatory here to ensure the leakage current does not exceed 10μA and power is not interrupted during the first insulation fault.

Compliance Standards

GB/T 16895.24 / IEC 60364-7-710: Special installations for medical locations.
GB/T 19214 / IEC 62020: Residual current monitors.
GB 50333: Building technical code for hospital clean operating departments.
GB 51348: Electrical design standards for civil buildings.

3. Product Series Specifications

3.1 YCIT Series Isolation Power Cabinet

A highly integrated low-voltage cabinet housing the transformer, insulation monitor, and alarm terminals.

Features: Low noise (<40dB), AI “Protection Wall” technology, real-time monitoring of insulation, load, and temperature.
Technical Data: Rated Voltage: AC220V; Rated Frequency: 50Hz; Protection: IP31; Main Bus Current: 10A~50A.

3.2 YCIT-J Series Insulation Monitor

Uses a 32-bit ARM processor and a 2.8-inch TFT color touchscreen.

Insulation Resistance: Range 30~5000KΩ (Accuracy ±10%).
Voltage Monitoring: Range 30~500Vac (Accuracy 0.2%).
Current/Power: Range 0.5~120A; Apparent power accuracy 0.5%.
Temperature: Range -30~210°C (Accuracy ±2°C).
Interface: RS485 communication (half-duplex).

3.3 YCIT-B Series Isolation Transformer

The core component for converting utility power to isolated power.

Capacity: 6.3KVA, 8KVA, 10KVA.
Material: High-grade copper with H-class insulation.
Safety: Noise <40dB; 4000V test voltage; built-in electrostatic copper shielding to prevent interference.

3.4 YCIT-G Insulation Fault Locator

Quickly identifies the specific branch circuit where a fault occurs, displaying results within seconds via LED indicators.

4. YCU Series UPS (Uninterruptible Power System)

Designed for critical industrial and medical equipment requiring constant voltage and frequency.

Key Features:

Technology: 3rd generation pure online intelligent UPS using IGBT and DDC (Direct Digital Control).
Power Range: 10KVA to 400KVA.
Output: Pure sine wave with 0ms switching time.
Communication: RS232, optional remote monitoring/SMS alerts.
Battery Management: Intelligent system with automatic charging current settings based on capacity.
