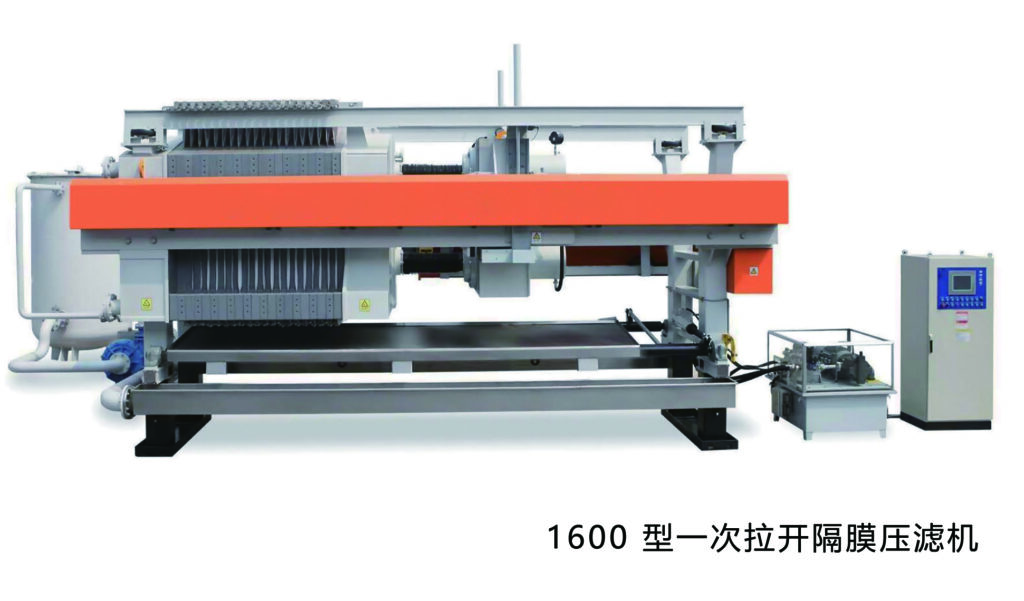

1. Product Overview
The 1600 Series represents the pinnacle of high-capacity, heavy-duty filtration technology. Featuring massive 1600mm x 1600mm filter plates, this machine is designed for ultra-large-scale industrial projects. By combining High-Pressure Membrane Squeezing with a Simultaneous (Primary) Opening mechanism, it achieves the shortest possible cycle times and the highest production throughput in the industry.
2. Core Technical Advantages
- Primary (Simultaneous) Opening Mechanism:Unlike standard filter presses that shift plates one by one, the Primary Opening system utilizes a heavy-duty hydraulic or mechanical chain system to open the entire plate stack simultaneously. This reduces the discharge time from 15–30 minutes down to less than 2–3 minutes, drastically increasing daily output.
- Secondary Membrane Squeezing:Equipped with advanced TPE or reinforced PP membrane plates, the system performs a secondary mechanical squeeze on the filter cake. This removes interstitial liquid that conventional pumping cannot, resulting in exceptionally dry cakes (ideal for dry stacking or incineration).
- Industrial-Scale Filtration Area:With a single-machine filtration area that can exceed $800\text{m}^2$, the 1600 series is built for the most demanding “mega-projects” in mining and municipal sludge treatment.
- Intelligent Automation:The system is fully integrated with a high-end PLC (e.g., Siemens) and HMI. It features automatic pressure compensation, safety light curtains, and optional cloth-washing or drip-tray systems for a hands-off operational environment.
3. Technical Specifications
- Plate Size: 1600mm x 1600mm .
- Squeezing Pressure: Up to 1.6-2.5 MPa ,16-25 bar.
- Frame Construction: High-strength Q345B carbon steel with heavy-duty sidebars for maximum structural integrity.
- Cake Thickness: Standard 30 mm to 50 mm (customizable).
Choosing the Right Filter Press: Your Solid-Liquid Separation Expert
In industrial production, solid-liquid separation is a crucial and often complex process. The filter press is a highly efficient solid-liquid separation machine that plays a vital role in various fields, including chemical processing, mining, food production, and wastewater treatment. Selecting the right filter press machine can not only significantly boost production efficiency but also optimize resource utilization and reduce operational costs.
How a Filter Press Operates
A filter press separates solids from liquids by applying pressure. The core process involves pumping a slurry into closed chambers formed by filter plates and filter cloths. Under pressure, the liquid (filtrate) passes through the filter cloth and is discharged, while the solid particles are retained, gradually accumulating to form a “filter cake.” This process is both efficient and stable, ensuring thorough solid-liquid separation.
Key Factors Influencing Filter Press Efficiency
To choose the best filter press, it is essential to understand the key factors that affect its performance:
- Slurry Characteristics: The particle size, concentration, and chemical composition of the slurry are the primary factors influencing filtration efficiency. Different slurry characteristics require matching with specific filter press models and filter cloths.
- Filter Plate Design: The design of the filter press plate directly impacts the filtration result. Common types include:
- Chamber Filter Plate: Simple in structure, suitable for general solid-liquid separation, and forms a fixed-volume filter cake.
- Membrane Filter Plate: Features an expandable membrane that can provide a secondary squeeze on the filter cake after filtration, further reducing its moisture content. This type is commonly used in industries requiring high purity or maximum dewatering.
- Plate and Frame Filter Plate: Ideal for small-batch processing, offering excellent flexibility.
- Filtration Pressure: The appropriate filtration pressure is crucial. Excessive pressure can damage the filter cloth, while insufficient pressure leads to low separation efficiency.
- Filter Cloth Material: The selection of the filter cloth is key to ensuring the efficient operation of the filter press. The right material prevents clogging and maximizes liquid flow rate.
How to Choose a Filter Press
When selecting a filter press for your business, consider the following points:
- Understand Your Application Needs: Determine the type and volume of slurry you need to process, as well as the required moisture content of the filter cake and the purity of the filtrate.
- Compare Different Types: The chamber filter press is popular for its high efficiency and wide application in mining and chemical industries. The membrane filter press stands out for its superior dewatering capabilities in industries demanding high purity. The plate and frame filter press is an ideal choice for small-batch processing due to its flexibility.
- Consider Long-Term Benefits: Investing in a high-quality filter press machine means lower maintenance costs and a longer service life, providing a significant long-term return on your investment.
Choosing a suitable filter press is a critical step in improving your production process efficiency and profitability. By thoroughly understanding your needs and consulting with professionals, you will be able to find the best solid-liquid separation solution for your business.
Choosing the Right Filter Press: Your Solid-Liquid Separation Expert
In industrial production, solid-liquid separation is a crucial and often complex process. The filter press is a highly efficient solid-liquid separation machine that plays a vital role in various fields, including chemical processing, mining, food production, and wastewater treatment. Selecting the right filter press machine can not only significantly boost production efficiency but also optimize resource utilization and reduce operational costs.
How a Filter Press Operates
A filter press separates solids from liquids by applying pressure. The core process involves pumping a slurry into closed chambers formed by filter plates and filter cloths. Under pressure, the liquid (filtrate) passes through the filter cloth and is discharged, while the solid particles are retained, gradually accumulating to form a “filter cake.” This process is both efficient and stable, ensuring thorough solid-liquid separation.
Key Factors Influencing Filter Press Efficiency
To choose the best filter press, it is essential to understand the key factors that affect its performance:
- Slurry Characteristics: The particle size, concentration, and chemical composition of the slurry are the primary factors influencing filtration efficiency. Different slurry characteristics require matching with specific filter press models and filter cloths.
- Filter Plate Design: The design of the filter press plate directly impacts the filtration result. Common types include:
- Chamber Filter Plate: Simple in structure, suitable for general solid-liquid separation, and forms a fixed-volume filter cake.
- Membrane Filter Plate: Features an expandable membrane that can provide a secondary squeeze on the filter cake after filtration, further reducing its moisture content. This type is commonly used in industries requiring high purity or maximum dewatering.
- Plate and Frame Filter Plate: Ideal for small-batch processing, offering excellent flexibility.
- Filtration Pressure: The appropriate filtration pressure is crucial. Excessive pressure can damage the filter cloth, while insufficient pressure leads to low separation efficiency.
- Filter Cloth Material: The selection of the filter cloth is key to ensuring the efficient operation of the filter press. The right material prevents clogging and maximizes liquid flow rate.
How to Choose a Filter Press
When selecting a filter press for your business, consider the following points:
- Understand Your Application Needs: Determine the type and volume of slurry you need to process, as well as the required moisture content of the filter cake and the purity of the filtrate.
- Compare Different Types: The chamber filter press is popular for its high efficiency and wide application in mining and chemical industries. The membrane filter press stands out for its superior dewatering capabilities in industries demanding high purity. The plate and frame filter press is an ideal choice for small-batch processing due to its flexibility.
- Consider Long-Term Benefits: Investing in a high-quality filter press machine means lower maintenance costs and a longer service life, providing a significant long-term return on your investment.
Choosing a suitable filter press is a critical step in improving your production process efficiency and profitability. By thoroughly understanding your needs and consulting with professionals, you will be able to find the best solid-liquid separation solution for your business.
Contact Qingdao Britop for more information if you are interested.
