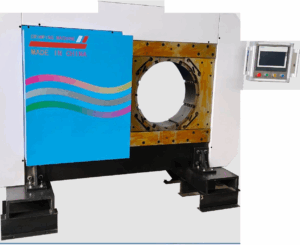

CBK 750 |
|
|
Crimping Range |
6- 530mm |
|
Quantity Of Dies |
13 sets |
|
Accuracy |
0.01 mm |
|
Output Volume Of Pump |
25L |
|
System Pressure |
31.5mpa |
|
Motor Power |
11KW |
|
Voltage |
380V |
|
Crimping Force |
4500KN |
|
Work Efficiency |
300 pcs/h |
|
Maximum Open Diameter |
590MM (Die not set) |
|
The Max Open Tolerance |
+53mm |
|
Machine Dimension |

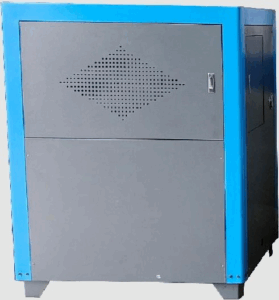

Host:1000*2400*1800mm Hydraulic power unit:1350*1050*1350mm |
|
Package Dimension |
Host:1300*1500*2200mm Hydraulic power unit:1450*1200*1550mm |
|
Net Weight |
Host Machine, 1500Kg HPU, 900Kg |
|
Gross Weight |
Host Machine, 1550KgHPU, 950Kg |
High-pressure hose crimping machine, also known as hose clamping machine or pipe crimping machine, is equipment used to tightly crimp metal fittings with high-pressure hoses to form high-pressure hose assemblies.
Structural Composition
-
- It mainly consists of a crimping mechanism, motor, gear pump, control valve and oil tank.
-

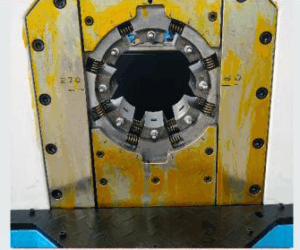

- The crimping mechanism is the working component, which drives the pressure sleeve to reciprocate through the cylinder piston to compress and release the spring pressure head.
Working Principle
-
- The motor drives the oil pump to output hydraulic oil, pushing the plunger in the crimping cylinder forward.
-
- The plunger and the two inner cone sleeves on the front cylinder cover drive the die base with symmetrical conical surfaces to shrink radially, realizing the crimping of the hose by the die block.
-
- When the shrinkage reaches the set value, crimping stops automatically, the electromagnetic directional valve reverses, and hydraulic oil enters the die opening cylinder to push the crimping plunger to move in the opposite direction.
-
- The die base drives the die block to reset under the action of the spring.
Key Features
-
- High crimping precision, with some models reaching 0.01mm.
-

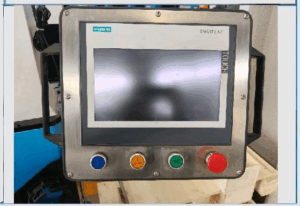

- High degree of automation and easy operation, equipped with button or foot switch control.
-
- High die hardness, adopting die steel such as Cr12MoV multiple heat treatment processes, wear-resistant and not easy to deform.
-
- Equipped with dual hydraulic circuits, running stably with fast return stroke, capable of crimping various special-shaped elbows.
Technical Parameters
-
- Parameters vary by model, with common crimping range of 6-76mm, motor power generally 3-5.5kW, opening and closing time about 33 seconds, and overall weight ranging from several hundred kilograms to over one ton.
Application Fields
-
- Widely used in oil fields, coal mines, aerospace, construction machinery, agricultural machinery and other industries.
-
- It is used to manufacture high-pressure hoses and fluid connectors in hydraulic systems.
Contact Qingdao Britop for more information if you are interested.
