1. International Market Partnership This product is developed and manufactured by Sichuan Yachen Electric Co., Ltd. To better serve the global power industry, the manufacturer has officially authorized BRITOP as the exclusive partner for international market development, overseas sales, and technical support services.
2. Product Overview The DTE2100 is an advanced online monitoring system designed for transformers (10kV and above). It provides real-time tracking of the grounding current in the core and clamping pieces, enabling proactive detection of insulation defects or multi-point grounding issues.
3. Key Features
- High Precision: Accuracy up to ±1% or ±1mA to detect minute current leakage.
- Rugged Reliability: IP65 rated and built to withstand harsh substation environments (-40°C to +85°C).

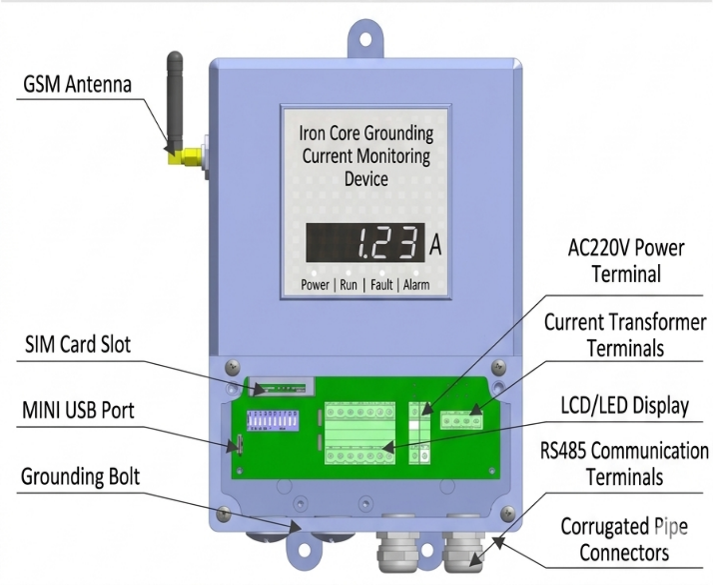

- Flexible Communication: Supports RS485 (Modbus RTU), CAN bus, and wireless (GSM/GPRS) integration.

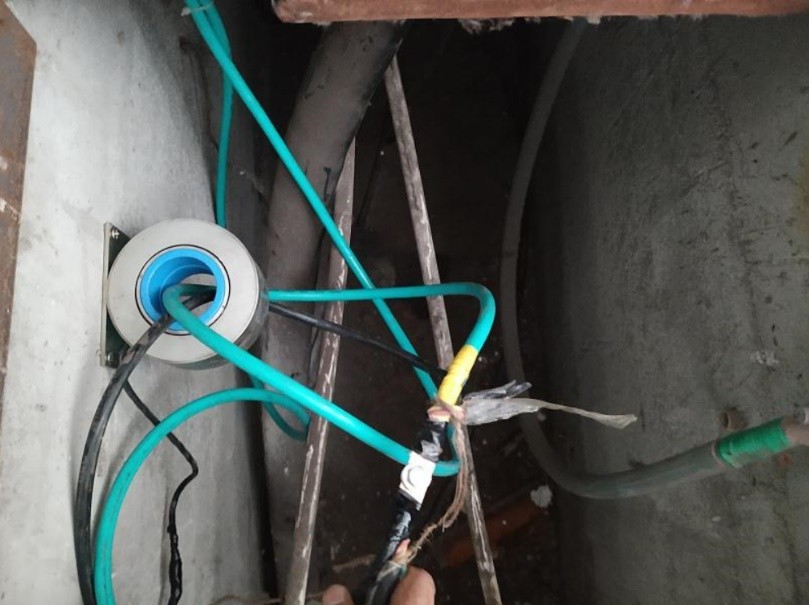

- Non-Intrusive: Easy installation using split-core current transformers without power interruption.
4. Technical Specifications
- Range: 0.1mA – 10A (Customizable).
- Operating Voltage: AC/DC 110-220V or CT induction power.
- Protection: High-level electromagnetic compatibility (EMC) design.
DTE2100, Transformer Core, Grounding Clamp, Grounding Current, Online Monitoring, Current Transformer, Condition Assessment, Early Warning, RS485, GSM/GPRS Communication.
- For more information about this product, please download the brochure from here, or contact Britop directly.
