SCYC-PWTM2304 Passive Wireless Online Temperature Monitoring Device– Smarter Monitoring, Reliable Power

SCYC-PWTM2304 passive wireless online temperature monitoring device uses high-voltage electric field induction power supply for real-time temperature detection of high-voltage transmission lines, conductor plates and substations, featuring maintenance-free, high isolation and stable digital transmission.

SCYC-PWTM2304 is a passive wireless online temperature monitoring system designed for high-voltage transmission lines, conductor plates, tension clamps, and AC/DC substations. Powered by high-voltage electric field induction power extraction (no batteries, no CT current dependency), it enables real-time, contactless, high-isolation temperature measurement for critical power equipment.

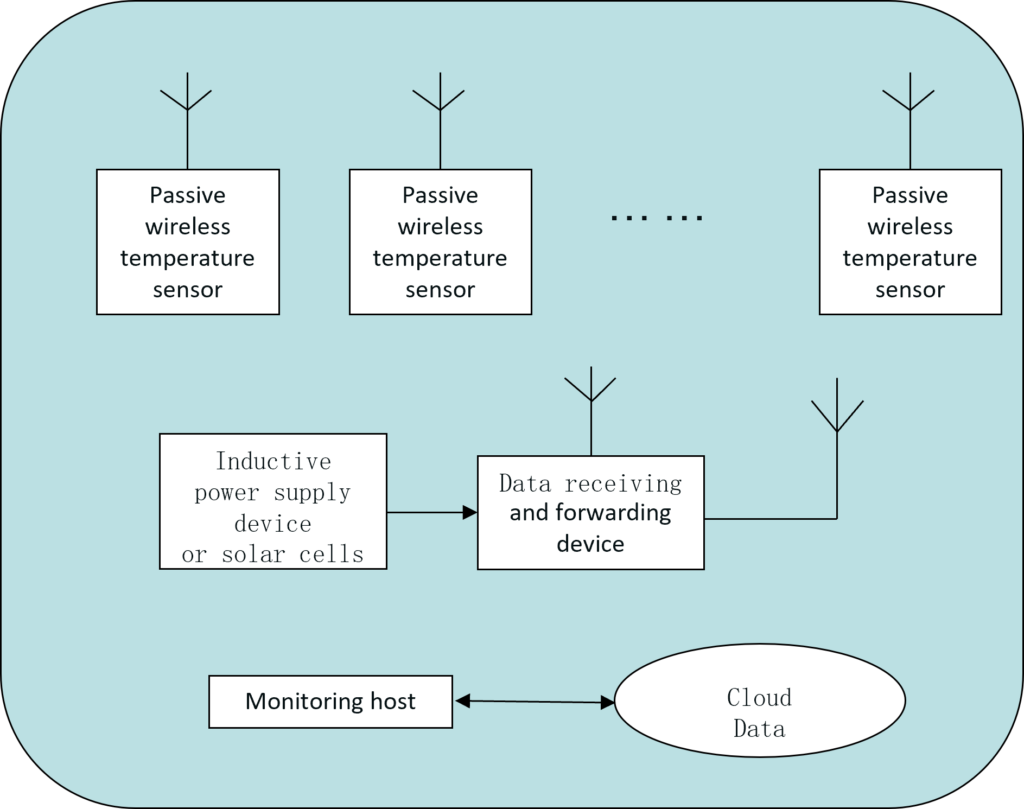

The system integrates passive temperature sensors, data receivers/forwarders, and cloud communication. It supports 2.4GHz RF digital transmission, unique sensor ID recognition, long-distance communication, and high anti-interference performance. With a measurement range of -30℃ to 135℃, accuracy of ±(standard reading ×1% +1℃), and 0.1℃ resolution, it delivers stable, maintenance-free operation for lifetime use.

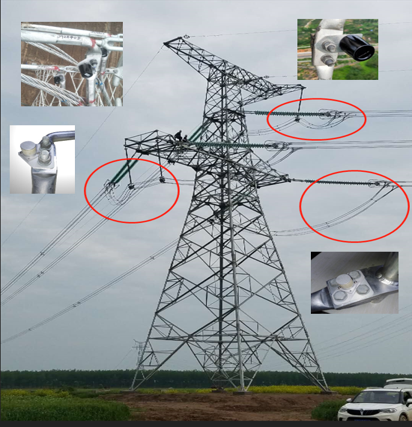

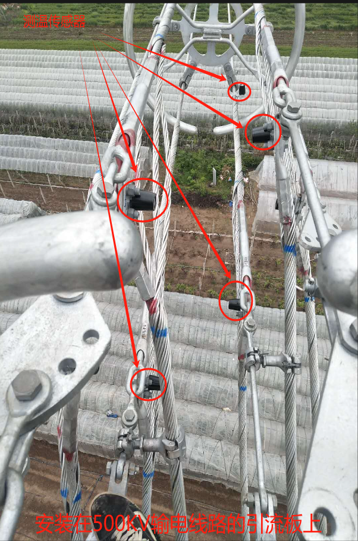

Ideal for 35kV–1000kV transmission lines, railway traction substations, grid substations, and converter stations, it provides real-time anomaly alarms, remote cloud monitoring, and automated early warning to prevent overheating failures, reduce manual inspection, and improve power system safety and reliability.

SCYC-PWTM2304 Passive Wireless Online Temperature Monitoring Device--Catalogue -Qingdao Britop--Sichuan Yachen (4) — This system is based on high-voltage electric field induction power extraction. This power extraction method differs from the current-induction CT power extraction method. Current-induction CTs require current in the power extraction line; if there is no current or the current is too low, power cannot be extracted, and the equipment cannot operate. High-voltage electric field induction power extraction does not require current; only a high voltage is needed. Its working principle is shown in the figure.

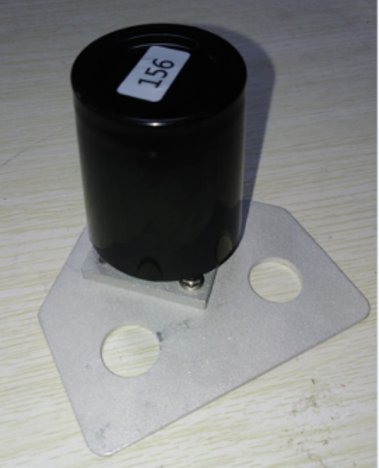

Temperature sensor parameters
Temperature measurement range	-30 ℃～ 135 ℃
Temperature measurement accuracy	± ( standard reading × 1% + 1 ℃ )
resolution	0.1 ℃

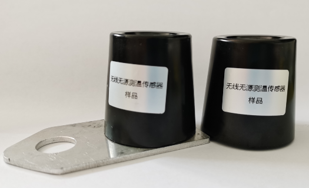

Sensor size	Built into the insulating plug
Power supply method	Inductive power supply, no built-in battery required.
Measurement cycle	The initial power-on time is less than 20 minutes, and the measurement cycle is less than 3 minutes.
Radio frequency standards	2.4GHz

Technical Features

1 ) Temperature measurement and wireless digital communication are achieved based on high-voltage inductive power extraction technology .

2 ) Each sensor has a unique ID code and a long wireless communication distance.

3 ) Passive temperature sensors do not require built-in batteries, use digital measurement and digital transmission; they eliminate battery risks, have good anti-interference capabilities, and are efficient and stable .

4 ) The passive temperature sensor is permanently maintenance-free and can be directly integrated with existing products or encapsulated into a single unit .

5 ) The passive temperature sensor uses wireless communication, high-voltage isolation , and is safe and reliable; it is also convenient for construction and maintenance.

For detail about this product, please download brochure from here.

(For China market):
Sichuan Yachen Electric Co., Ltd.
Homepage:               http://www.ycdqkj.com.cn
Contact:                     Mr. Xu
Tel (Wechat):              +86 13088269292
Technical:                  +86 816 6394499
Commercial:              +86 816 2311298
For international sale, please contact:
Qingdao Britop International Trading Co.,Ltd.
Website:                     https://qdbritop.com
Contact:                     Bright Meng
Email:                         britop@qdbritop.com
Tel (Wechat): +8613811458455

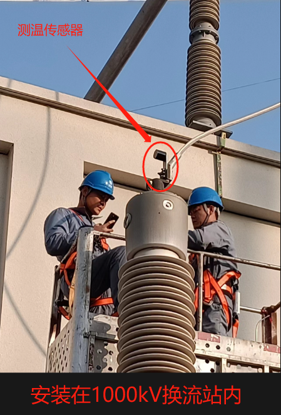

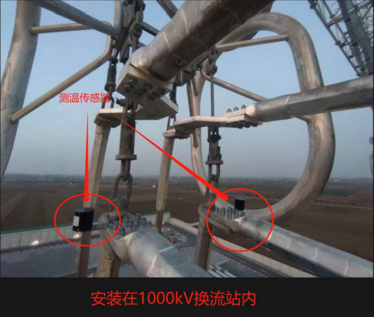

1000KV SCYC-PWTM2304 Passive Wireless Online Temperature Monitoring Device--Catalogue -Qingdao Britop--Sichuan Yachen (21) — 1000KV SCYC-PWTM2304 Passive Wireless Online Temperature Monitoring Device–Catalogue -Qingdao Britop–Sichuan Yachen (21)
