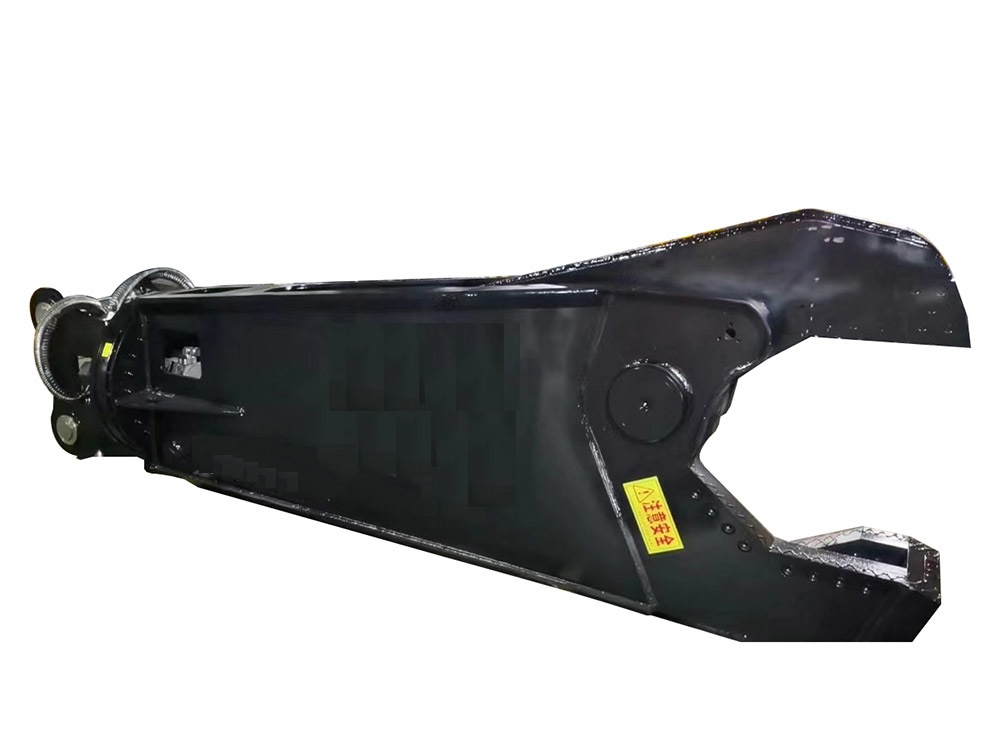

- Match with a long-arm excavator to excel at demolishing high-rise steel frame buildings.
- Use with a standard-arm excavator to cut and dismantle scrap steel, profiles, and pipes.
- It is also a must-have accessory for demolitions in chemical plants, steel plants, and power plants, and can separate and refine scrap cars, ships, and trains.
- Large jaw opening and large-diameter oil cylinder for strong biting force.
- hree-groove slewing ring stabilizes the turntable; built-in plane bearing enables flexible rotation.
- Equipped with adjustable blades, allowing repeated use of one blade to reduce replacement frequency.
- Hydraulic oil cylinder is covered to block splashing concrete and steel debris, ensuring safe operation.
- Specially designed oil circuit simplifies pipelines and makes maintenance easier.
| Type/parameters | BTSCS-220 | BTSCS-260C | BTSCS-35C |
| Weight of hydraulic shear (KG) | 1850 | 220 | 2550 |
| Maximum opening size (MM) | 450 | 500 | 600 |
| Working flow rate（L/min) | 200-240 | 200-240 | 200-240 |
| Applicable excavator tonnage (Ton) | 20-22 | 22-28 | 28-36 |
| Hydraulic cylinder stroke (MM) | 470 | 470 | 470 |
| Note: Larger thrust cylinder is optional for crushing operation, while design will be adapted if necessary. | |||
Contact Qingdao Britop for more information if you are interested.
