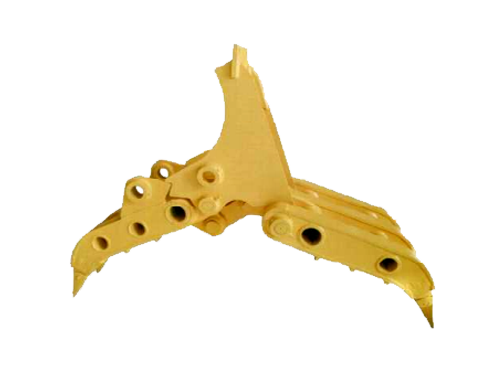

Designed for grabbing steel and the like.
This series attachment includes mechanical grabber and hydraulic grabber.
1,Mechanical grabber can not rotate or swing left and right, but only swing back and forth.
2,Hydraulic grabber can rotate 360 degrees, and left-right, controlled by hydraulic control valve.
Contact Qingdao Britop for more information if you are interested.
| Main parameters | UOM | BTSG03 | BTSG04 | BTSG06 | BTSG08 | BTSG10 |
| Suitable Excavator | ton | 3.5-5 | 6-10 | 12-18 | 20-28 | 30 |
| Weight | kg | 280 | 400 | 900 | 1500 | 1700 |
| Opening | mm | 1500 | 1500 | 1900 | 2000 | 2000 |
| Height | mm | 125 | 140 | 190 | 220 | 230 |
| Working Pressure | bar | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 |
| Set Up Pressure | bar | 170 | 180 | 190 | 200 | 210 |
| Working Flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 |
