Introduction Qingdao Britop International Trading Co., Ltd. bring you the Intelligent Grounding Unit (IGUHV), a cutting-edge solution designed to revolutionize the safety and efficiency of high-voltage cable networks through advanced R&D and precision engineering.
Why Choose IGUHV? High-voltage cable systems require constant vigilance. The IGUHV is a modular, technology-driven monitoring system that ensures your power infrastructure remains stable and secure.
- Precision Monitoring: Every sensor is designed for accuracy, tracking everything from circulating currents to microscopic vibrations.

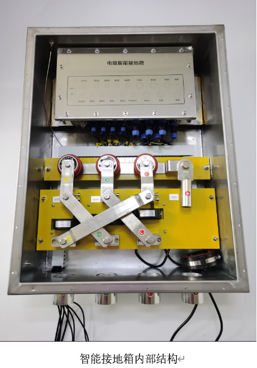

- Modular Design: The system’s control unit is modular, allowing users to add or remove functions to meet specific site requirements.

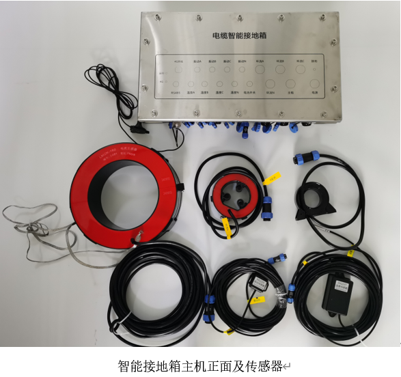

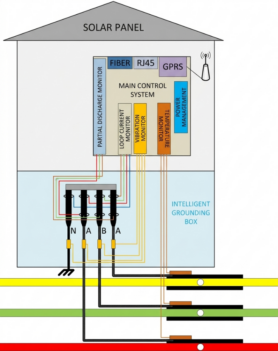

Core Product Details The IGUHV system integrates several critical monitoring functions into a single, robust unit:
- Cable Circulating Current Monitoring: Real-time tracking of sheath currents to prevent overheating and energy loss.

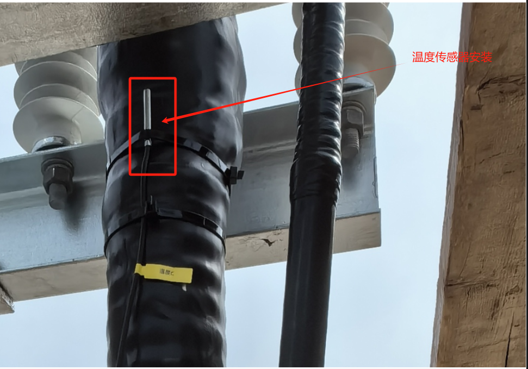

- Surface Temperature Monitoring: Continuous thermal tracking via dedicated temperature sensors and collectors.
- Partial Discharge (PD) Detection: Identifies insulation weaknesses before they lead to catastrophic failure.
- Vibration & Anti-Theft Monitoring: Detects unusual physical activity or cable movement for enhanced security.
- Sheath Induced Voltage Monitoring: Ensures voltages remain within safe operational limits.
- Self-Powered Technology: Utilizes inductive power tapping (CT) to ensure the unit operates reliably without external power sources.
Applications Our solutions are widely deployed in:
- Electric Power Grids: Enhancing grid reliability and fault location.
- Telecommunications & Railways: Protecting critical infrastructure.

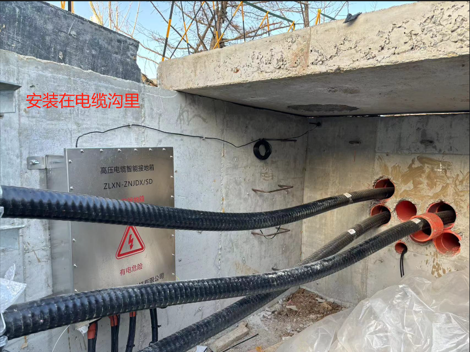

- Industrial Use: Specifically designed for installation in cable trenches and harsh environments.
Contact Qingdao Britop for more information if you are interested.
Email: britop@qdbritop.com
Website: https://qdbritop.com
Download the brochure of this product>> click here
Contact Qingdao Britop for more information if you are interested.

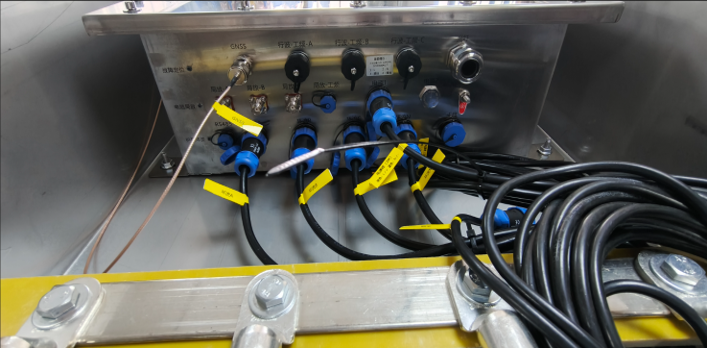

On-site Installation:
IGUHV, High Voltage Cable Monitoring, Sheath Circulating Current, Partial Discharge Detection,Cable Temperature Sensor, Power Grid Safety.
